Ion molecule reaction mass spectrometer

FuelSense

Fuel that is mixed with engine oil has a significant influence on the lubricating properties of the engine oil and consequently on the friction and wear of components in the combustion engine. Increased amounts of fuel in the engine oil lead to a reduction in the oil viscosity and consequently to reduced friction as well as to increased wear.

Especially for transient engine operation, a device for real-time measurements is indispensable to obtain time-resolved oil dilution values. The V&F FuelSense has been specifically designed for this task. In combination with the V&F LubeSampler oil dilution can now be determined on-line.

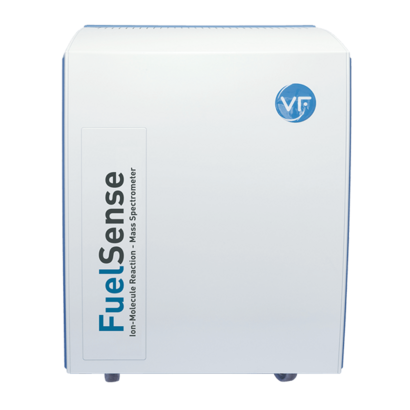

Product Photo V&F
Product Photo V&F FuelSense
Product Photo V&F FuelSense

Typical applications

Functional diagram

Function Principle V&F FuelSense

Specifications

Technical data
Technical DataIMR-MS
Mass range7 - 519 amu
Resolution< 1 amu
Analysis time1 Analyze / 10min
Measuring range10^5
Detection limit0.2% Oil dilution
Concentration drift‹ ± 5% over 24 h
Accuracy<± 3%
Precision<± 3%
Ambient temperature20 °C - 35 °C
Humidity max.80 % (non-condensing)
Gas consumption150 ml
Gas inlet temperature130 °C
Gas inlet pressure0,75 - 2 bar(a)
Power consumption230 V/50 Hz or 115 V/60 Hz 800 W
Dimensions (WxHxD)534 x 743 x 639 mm
Weight75 kg

Reference clients (excerpt)

Reference FCAReference FKFSReference VW

Product brochures

For more details, specifications and further information, please refer to our product brochures.
